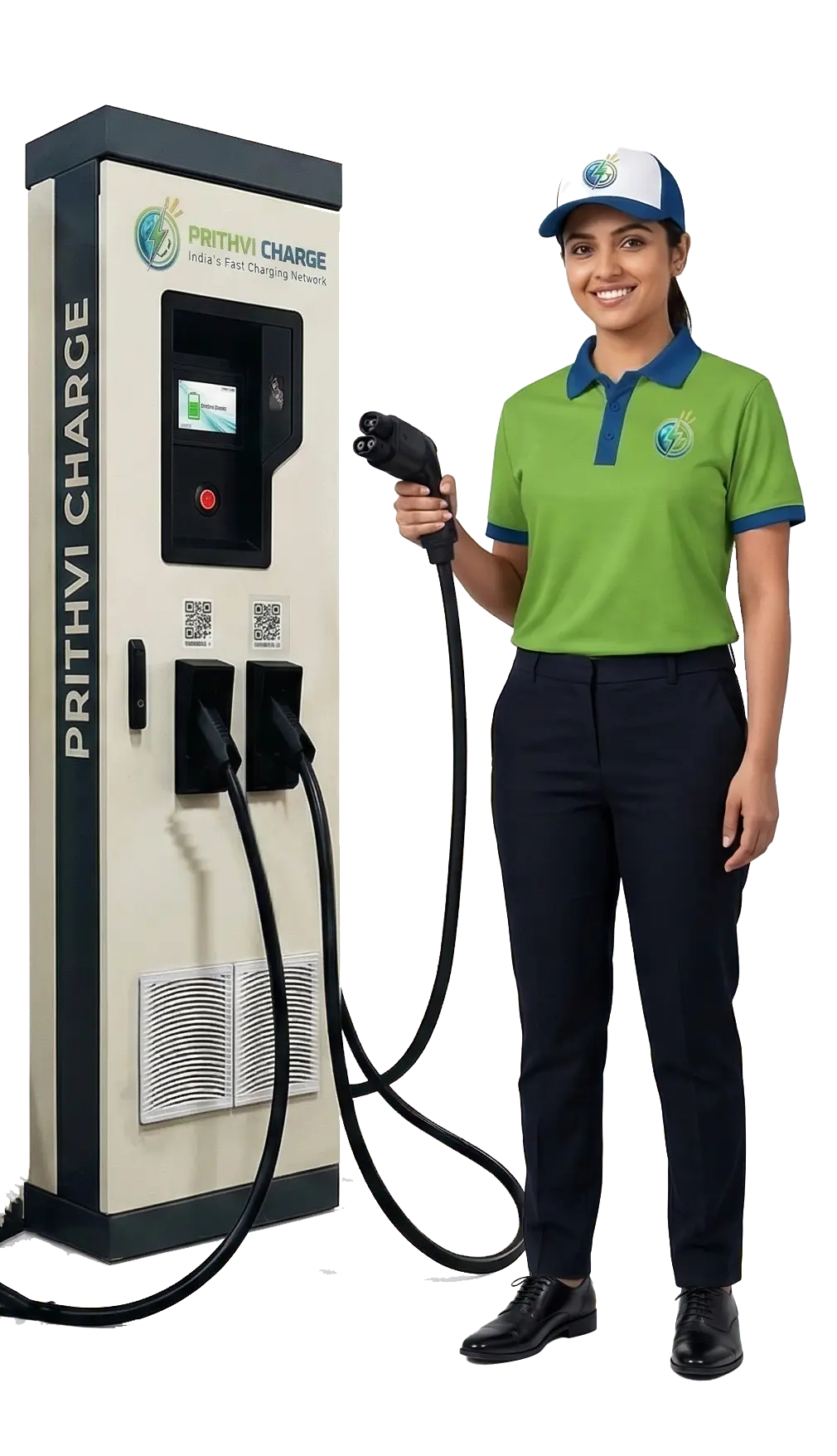

A high-performance DC fast EV charger designed for rapid and efficient charging, ideal for commercial, highway, and public infrastructure with reliable and scalable performance.
| Models | Single Gun | Dual Gun | Wallbox |
|---|---|---|---|
| Power (kW) | 30–150 | 60–360 | 20–50 |
| Communication | OCPP 1.6J | OCPP 1.6J | OCPP 1.6J |
| Connectivity | GSM 4G, Ethernet |
GSM 4G, Ethernet |
GSM 4G, Ethernet |
| No. of Connectors | 1 | 2 | 1 |
| Capacity | 30kW | 60kW | 120kW | 180kW | 240kW | 360kW |
|---|---|---|---|---|---|---|
| Input Rating | 415 VAC ±10% | |||||
| Outlet Options | CCS2 (GB/T & CHAdeMO - Optional) | |||||
| DC Output Power | 30kW | 60kW | 120kW | 180kW | 240kW | 360kW |
| Input Frequency | 50 Hz | |||||
| Number of EV Served | Single / Dual | |||||
| DC Output Voltage | 100–1000V DC | |||||
| Cable Length | 5.0m | |||||
| Maximum Current | 150A | 200A | 250A | |||
| Connection Type | 3P + N + PE | |||||
| Protection | Over current, Over voltage, Under voltage, Surge protection | |||||
| Efficiency | ≥95% | |||||
| Connectivity | 4G, Ethernet | |||||
| User Authentication | RFID / App | |||||
| Operating Temp | -5°C to +75°C | |||||
| Weight (kg) | 100 | 130 | 190 | 290 | 340 | 510 |
